AEON PNR Series

Specifically Designed for Parks and Recreation



AEON’s PNR Series is designed specifically for Municipal, High School, Collegiate, Recreational Indoor and Outdoor Applications. The AEON PNR Series Provides Crisp Illumination, avoiding any Visual Discomfort. The PNR Series is the most Efficient High Powered Luminaire with an Incredibly High (95%+) Total Efficiency. Up to 170+ Delivered LpW. Means Better Light, with Fewer Luminaires. AEON’s Proprietary Optics produce the Ideal Light Distribution and Beam Angles for a variety of applications while saving you in energy costs compared to traditional HID Lighting.

Engineered with State-of-the-Art technology for Efficiency, Glare Control, and Uniformity, the AEON features instant On/Off, Dimming, Full Controllability, High Energy Efficiency, Flicker-Free Lighting, and Complete Flexibility. The PNR Series has a high Color Rendition Index showing True Colors: CRI >85+ that is ideal for Broadcasting. That makes the AEON PNR Series neighborhood friendly with No Spillage or Sky Glow. Our Proprietary Glare-Free Illumination has no visual discomfort with an UGR <19, easy on the eyes. The PNR Series has an Incredibly Long-Life Span of over 100,000 hours.

The AEON PNR Series has 2 popular lumen packages to suit a variety of indoor and outdoor applications: 500W with 91,300 delivered lumens and 750W with 113,880 delivered lumens. The Advanced Technology within the AEON Drivers are Specifically Engineered and Designed for AEON Luminaires. If you are looking to build a State-of-the-Art Lighting System from the Ground-Up or Update your Current Lighting System, the AEON PNR Series has the right solution for you and your project.






2 Popular Lumen Packages

500W: 91,300lm (Replaces 2,000W HID)

750W: 113,880lm (Replaces 3,000W HID)





2 Popular Lumen Packages

500W: 91,300lm (Replaces 2,000W HID)

750W: 113,880lm (Replaces 3,000W HID)




Case Studies

ACU Intramural Field PNR Project

Harrison Park

Applications

Our Technology is in a League of its Own!

Innovation with Outstanding Efficiency and Highest Quality Illumination!

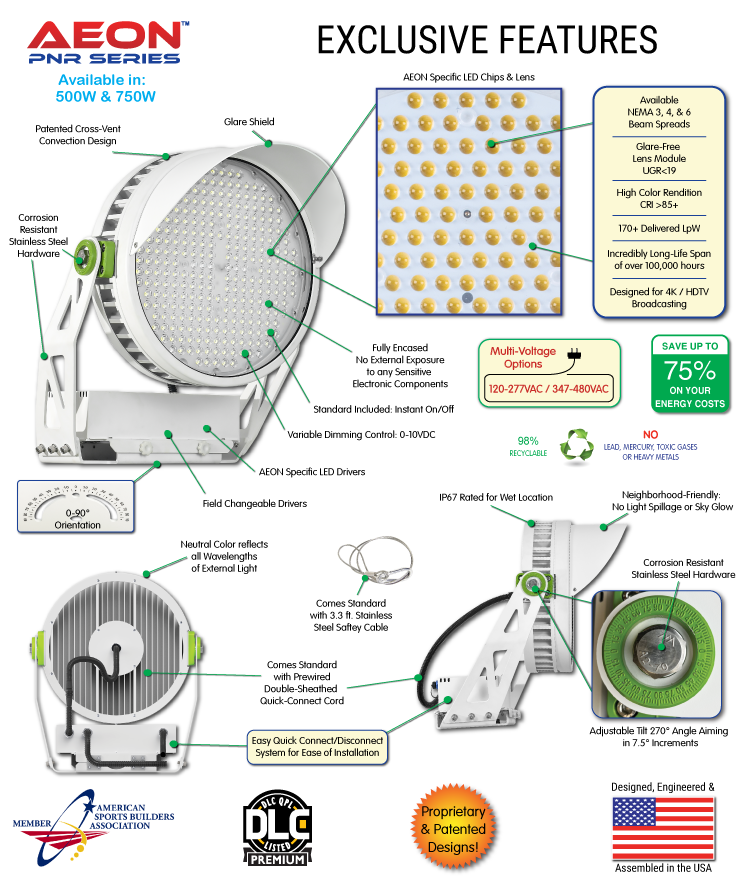

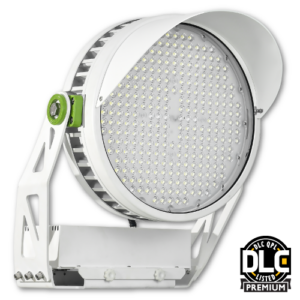

PNR Sports Lighting

AEON-Sports-PNR-500-750

HL-APS-500WD

Watts 500W
Delivered Lumens 91,300
HID Equivalent 2000W
Energy Savings* 75%
Weight 45 lbs.
EPA (Sq. Ft.) 2.25
AEON-Sports-PNR-500-750

HL-APS-750WD

Watts 750W
Delivered Lumens 113,880
HID Equivalent 3000W
Energy Savings* 75%
Weight 49 lbs.
EPA (Sq. Ft.) 2.25

The Most Cost-Effective, High-Quality Sports Lighting Solution

  • Patented Cross-Vent Convection Design: Extends Components Life and the Life of the Luminaire
  • Highly Efficient: Up to 170+ Delivered LpW. More Light with Fewer Luminaires. 95%+ Total Efficiency.
  • 2 popular lumen packages to suit a variety of indoor and outdoor applications
    • 500W with 91,300 delivered lumens (Replaces 2,000W HID)
    • 750W with 113,880 delivered lumens (Replaces 3,000W HID)
  • Incredibly Long-Life Span of over 100,000 Hours
  • Solid-State Design: No Moving Parts. Ideal for High Vibration Areas (ANSI C136.31, 3G Rated)
  • High Color Rendition showing True Colors: CRI >85+
  • Proprietary Glare-Free Illumination with Controlled Intensity and Uniformity: UGR <19
  • Neighborhood-Friendly: No Spillage or Sky Glow
  • Proprietary Design offers Uniform and Constant Light Levels throughout the Life of the Luminaire with Minimal Lumen Depreciation
  • Scalable LED Modules in NEMA 3, 4, and 6 Beam Spread
  • Heavy-duty, Lightweight and Durable Die-Cast Design for High Wear Resistance: Withstands Harsh, Extreme Outdoor Conditions and Corrosive Environments
  • 6kV (Line-Line) and 10kA/20kV (Line-Ground) Surge Protection against Over Voltage, Short Circuit, and Over Temperature
  • Ultra-Low EMI eliminates Electrical Interference with surrounding Electronic Systems
  • Suitable for Ambient Temperatures: -40ºF~+122ºF (-40ºC~+50ºC)
  • Adjustable in 7.5⁰ Increments: 0-90⁰ Orient and 270⁰ Tilt Angle
  • Multi-Voltage: Available in 120-277VAC and 347-480VAC
  • Save Labor Cost Significantly: Quick & Easy Installation Process
  • Meets/Exceeds National and International Standards
Request PNR Catalog



Enjoy a Drastic Reduction in your Monthly Utility Bill and Eliminate Costly Maintenance Expenses.

A Favorable Impact on your Bottom-Line.

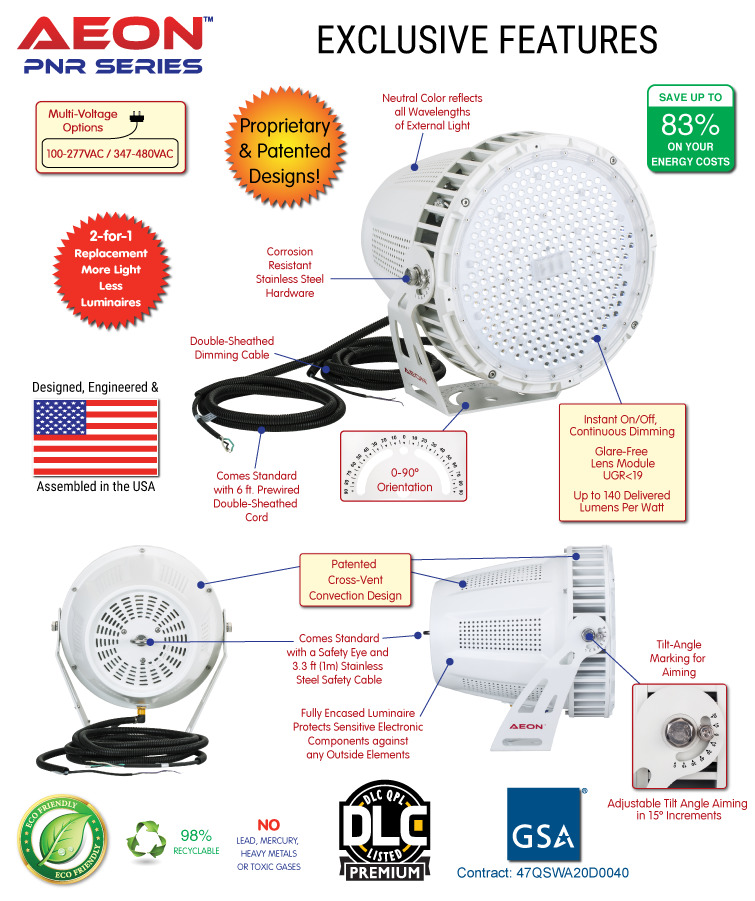

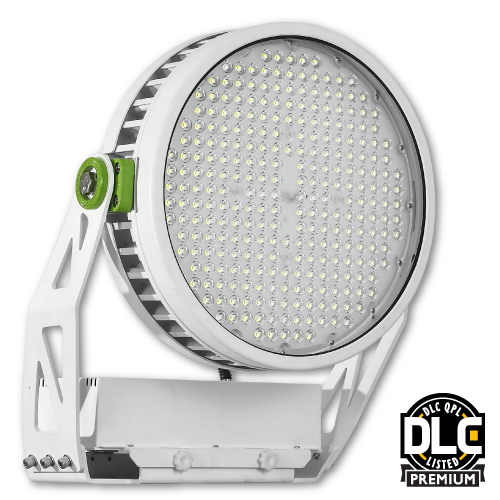

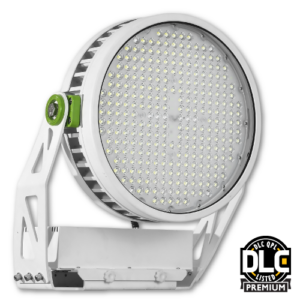

PNR Flood Lighting

AEON-Flood-PNR-500-750

HL-APF-500WD

Watts 500W
Delivered Lumens 91,300
HID Equivalent 2000W
Energy Savings* 75%
Weight 45 lbs.
EPA (Sq. Ft.) 2.25
AEON-Flood-PNR-500-750

HL-APF-750WD

Watts 750W
Delivered Lumens 113,880
HID Equivalent 3000W
Energy Savings* 75%
Weight 49 lbs.
EPA (Sq. Ft.) 2.25

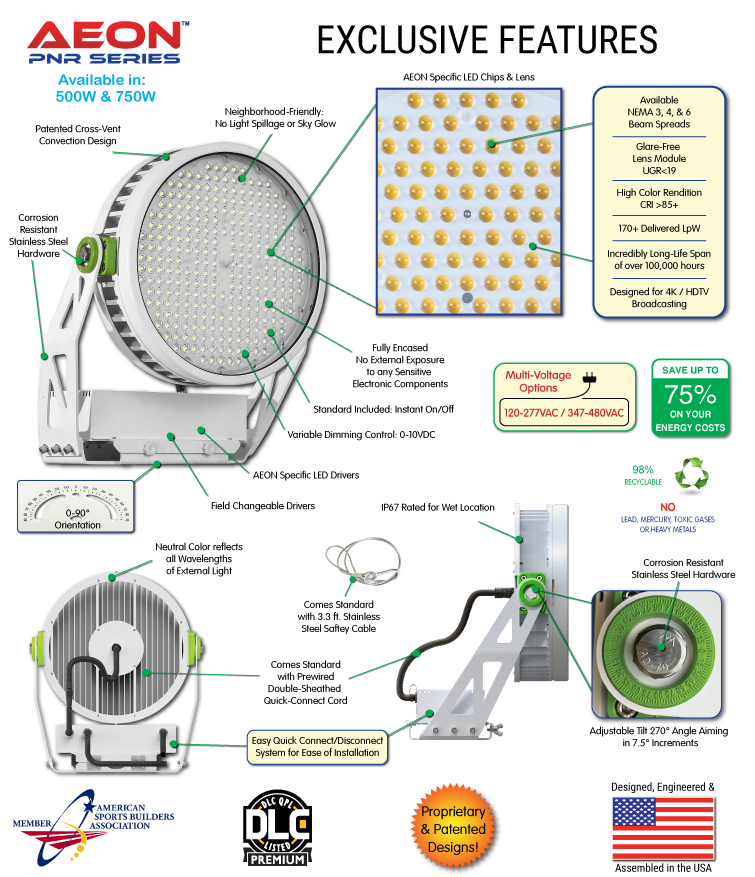

The Most Cost-Effective, High-Quality Flood Lighting Solution

  • Patented Cross-Vent Convection Design: Extends Components Life and the Life of the Luminaire
  • Highly Efficient: Up to 170+ Delivered LpW. More Light with Fewer Luminaires. 95%+ Total Efficiency.
  • 2 popular lumen packages to suit a variety of indoor and outdoor applications
    • 500W with 91,300 delivered lumens (Replaces 2,000W HID)
    • 750W with 113,880 delivered lumens (Replaces 3,000W HID)
  • Incredibly Long-Life Span of over 100,000 Hours
  • Solid-State Design: No Moving Parts. Ideal for High Vibration Areas (ANSI C136.31, 3G Rated)
  • High Color Rendition showing True Colors: CRI >85+
  • Proprietary Glare-Free Illumination with Controlled Intensity and Uniformity: UGR <19
  • Neighborhood-Friendly: No Spillage or Sky Glow
  • Proprietary Design offers Uniform and Constant Light Levels throughout the Life of the Luminaire with Minimal Lumen Depreciation
  • Scalable LED Modules in NEMA 3, 4, and 6 Beam Spread
  • Heavy-duty, Lightweight and Durable Die-Cast Design for High Wear Resistance: Withstands Harsh, Extreme Outdoor Conditions and Corrosive Environments
  • 6kV (Line-Line) and 10kA/20kV (Line-Ground) Surge Protection against Over Voltage, Short Circuit, and Over Temperature
  • Ultra-Low EMI eliminates Electrical Interference with surrounding Electronic Systems
  • Suitable for Ambient Temperatures: -40ºF~+122ºF (-40ºC~+50ºC)
  • Adjustable in 7.5⁰ Increments: 0-90⁰ Orient and 270⁰ Tilt Angle
  • Multi-Voltage: Available in 120-277VAC and 347-480VAC
  • Save Labor Cost Significantly: Quick & Easy Installation Process
  • Meets/Exceeds National and International Standards
Request PNR Catalog



Sustainable Communities Begin with Smart Choices.

Minimize Costs while Maximizing Safety.

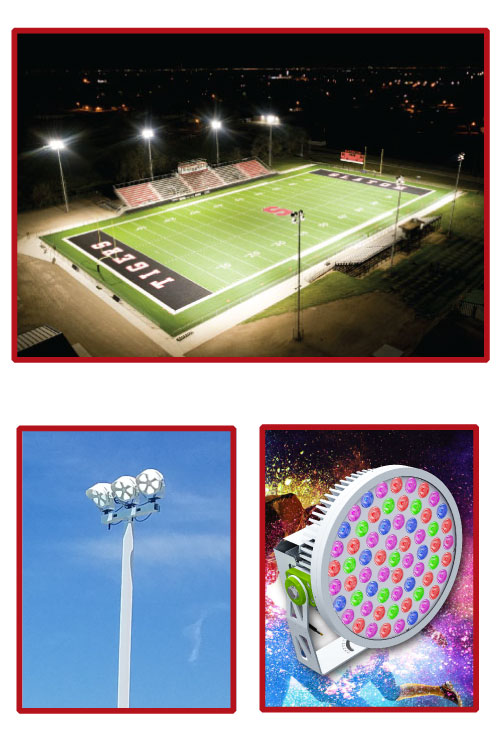

Additional Capabilities

Build a State-of-the-Art Lighting System from the Ground-Up or Update your Current Lighting System for the New Decade!

PNR-Additional-Capabilities



  • FREE Professional Lighting Layouts

  • Build the Complete Package with Pole Capabilities

  • Project Financing

  • Extended Warranty

  • HyLink Wireless Controls

  • RGB Capabilities: Click Here

  • Learn More: Click Here

  • Affordable Initial Costs. Lower Life Cycle Costs.

    Lowest Total Cost of Ownership.
