AEON Sports Lighting

Industry-Leading Delivered Lumens for Sports Venues

AEON PRO Sports Lighting is built for stadiums, arenas, recreation complexes, and athletic facilities that need powerful delivered lumens, glare-free optics, high color accuracy, long life, and lower total cost of ownership.

Future-proof your lighting! Featuring field-changeable lenses, LED modules, and drivers, our luminaires deliver worry-free, versatile performance that evolves with your space for years to come.

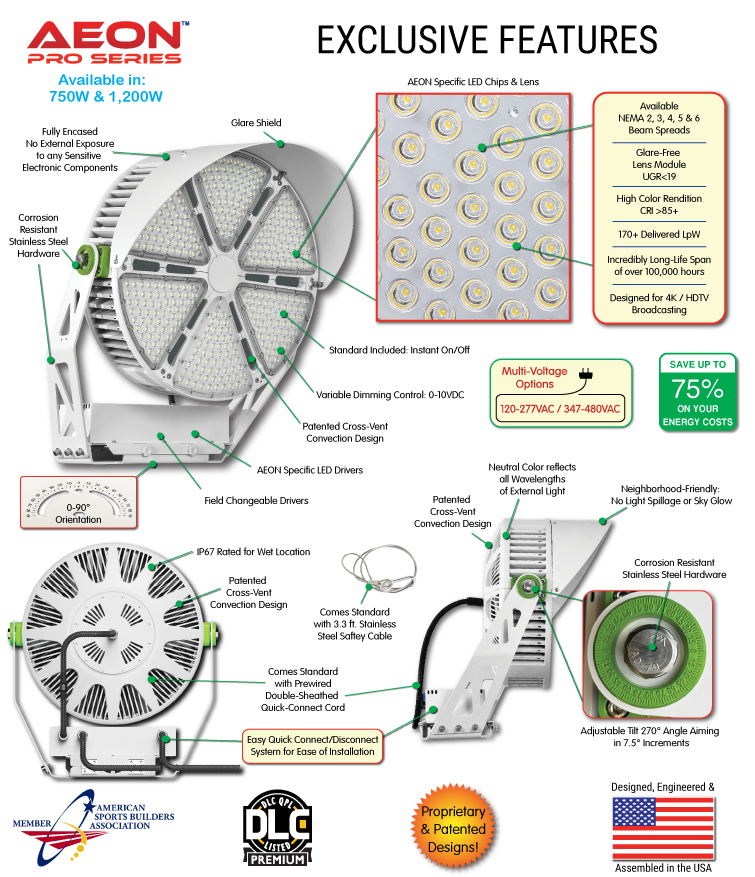

Construction

• Heavy-duty, Lightweight, and Durable Die-Cast Design for High Wear Resistance: Withstands Harsh, Extreme Outdoor Conditions and Corrosive Environments
• The Most Powerful Sports Light Luminaire with the Highest Reliability Level: Incredibly High (95%+) Total Efficiency and with the Highest Efficacy in its own Class: Up to 170+ Delivered LpW. Greater Light, Fewer Luminaires
• Proprietary Thermal Management Design with Passive Cooling Maximizes Heat Dissipation for a Longer Luminaire Life. Designed for Greater Life Expectancy in Warmer Climates
• Incredibly Long Lifespan of over 100,000 Hours
• Patented Revolutionary Aerodynamic Design for Minimal Wind Resistance
• State-of-the-Art, Aesthetically Pleasant Compact Design with No Exposed Electronics or Wiring
• Rugged, Weather-Tight Design, IP67 (NEMA: 6P) Rated for Wet location

Precision, Glare-Free Optics

• Proprietary Glare-Free Illumination: No Uncomfortable Sensation or Visual Discomfort for the Players, Spectators or the Broadcast. UGR <19
• Excellent for 4K, Ultra-HD, and HDTV Broadcasting, Digital Photography, and Flicker-free Slow-Motion Recording for Optimal Television and Security Viewing
• Precise, Custom-engineered Optics with Controlled Intensity and uniformity maintain consistent delivered foot candles over the luminaire’s life with Minimal Lumen Depreciation. High Color Rendition showing True Colors: CRI >85+
• Scalable LED Modules in NEMA 2, 3, 4, 5, and 6 Beam Spreads allow for Optimized Configuration for a Variety of High-Performance Applications
• Various Delivered Lumen Packages to suit a Variety of Indoor and Outdoor Sports
• Proprietary Design offers Uniform and Constant Light Levels throughout the Life of the Luminaire, with Minimal Lumen Depreciation
• Avoids Light Pollution and Trespass: Optical Accuracy Directs Light precisely where needed without Spill
• Neighborhood-Friendly: Avoids Light Pollution and Trespass. Optical Accuracy – Directs Light precisely where needed without any Light Spillage or Sky Glow.
• US Patents: D866,832, D866,833, D866,834, D866,835

Electronics

• Advanced Technology for Luminaire Longevity: Integrated Power Supply Operates at Lower Temperatures and at an incredible 95% Efficiency.
• AEON Drivers are Specifically Engineered and Designed for AEON Luminaires.
• Technology within the Luminaire: No Outside Exposure to any Sensitive Electronic Components. Offers Advanced Functionality and User-Friendly features with Quick Connect Wiring System. No Manual Wiring Required for Dimming or Controls
• 6kV (Line-Line) and 10kA / 20kV (Line-Ground) Surge Protection against Over Voltage, Short Circuiting, and Over Temperature
• Multi-Voltage: Available in 120-277VAC and 347-480VAC
• Variable Dimming Control: 0-10VDC
• Suitable for Wide Ambient Temperatures: -40ºF~+131ºF (-40ºC~+55ºC)

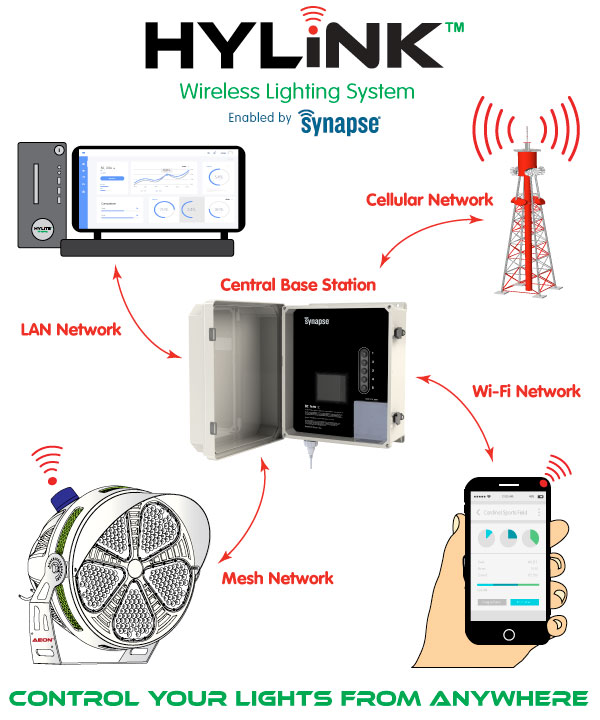

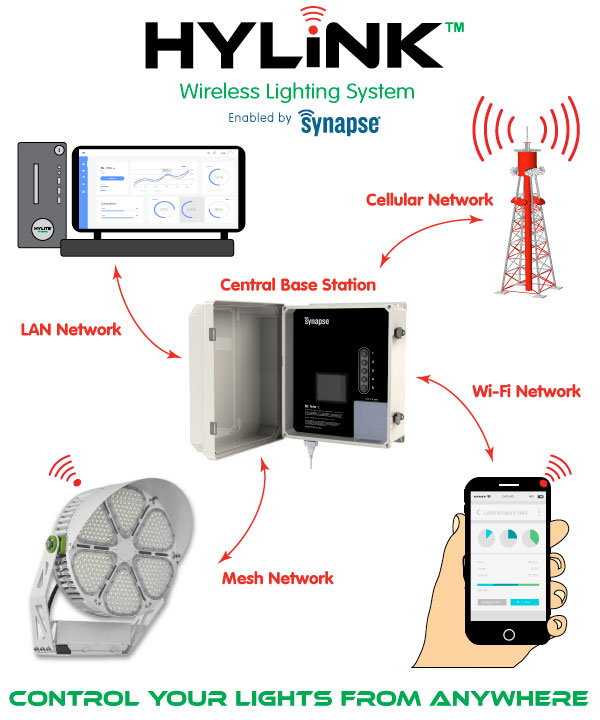

• Operational Flexibility: Adaptable to Various Intelligent Lighting Controls: Wired or Wireless, Wi-Fi, Bluetooth, Zigbee, Dali, AirMesh Networks, Hybrid Networked Lighting Control, etc.
• Ultra-Low EMI (THD <20) eliminates Electrical Interference with surrounding sensitive Electronic Systems.

Functionality

• Lowest Total Cost of Ownership. Shortest Payback Period and a High ROI.
• Standard Included: Instant On/Off, Continuous Dimming, Prewired Sheathed Cord, Hoist Hook and 3.3 ft (1m) Stainless Steel Safety Cable
• Variable Dimming Control: 0-10VDC
• Simple, Reliable and Affordable, Maintenance-free Design. Can be Operated with or without Glare Shield
• Save Labor Cost Significantly: Quick and Easy Installation Process
• Meets/Exceeds National and International Standards

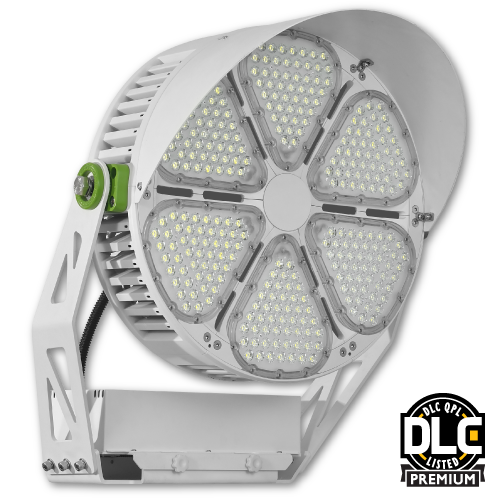

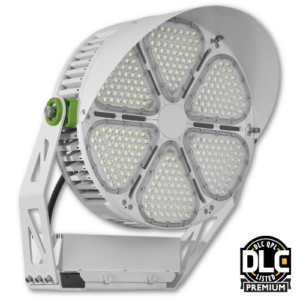

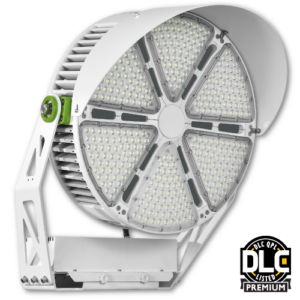

• DLC Premium Listed
• Designed for 4K and HD Broadcasting.
• User Friendly Features: Lenses, Modules and Drivers are Field-Changeable. Saves Time, Labor and Money….no need to replace the entire Luminaire!

Create an Experience that won’t be Soon Forgotten

• The Full-Spectrum RGBA/RGBW Color Luminaire delivers the highest reliability with an incredibly high 95% total efficiency and the highest efficacy in its class.
• Create Dynamic Scenes and Excitement to your Venue or Facility.
• Suit a Variety of Indoor and Outdoor Applications.
• Ideal for Floodlighting, Spotlighting, Wall Washing and Grazing.
• Incredibly Long-Life Span of over 100,000 Hours.
• IP67 – Complete Protection against Dust, Debris and Water Infiltration.
• Multi-Voltage Options: 120-277VAC or 347~480V.
• Variable Dimming Control: 0-10VDC
• Operational Flexibility: Adaptable to Various Intelligent Lighting Controls: Wired or Wireless, Wifi, Bluetooth, Zigbee, Dali, AirMesh Networks, Hybrid Networked Lighting Controls, etc.

Learn More – AEON RGBA/RGBW

Enjoy a drastic Reduction in your Monthly Utility Bill and Eliminate Costly Maintenance expenses. A favorable Impact on your bottom line.

Sports Lighting Applications

AEON sports lighting is built for outdoor stadiums, indoor venues, arenas, recreation facilities, racetracks, and high-performance environments where clarity, control, and reliability matter.

Outdoor Stadiums

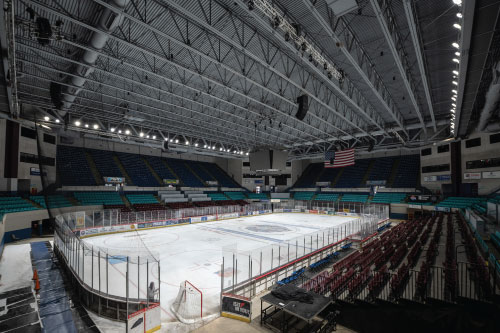

Indoor Stadiums

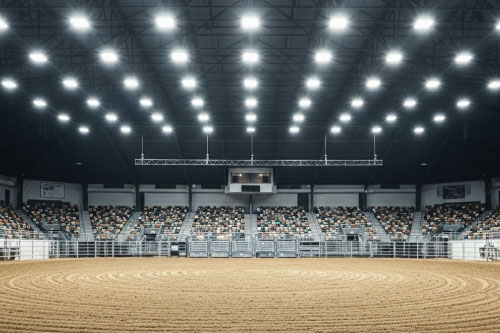

Arenas

Outdoor Recreation

Racetracks
