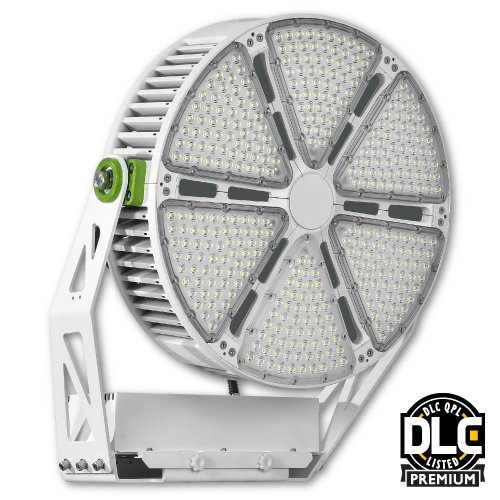

AEON Flood Lighting

Industry Leader in Delivered Lumens!



Watts 230W
Delivered Lumens 33,100
HID Equivalent 1000W
Energy Savings* 77%
Weight 27 lbs
EPA (Sq. Ft.) 1.6


Watts 310W
Delivered Lumens 44,100
HID Equivalent 1500W
Energy Savings* 79%
Weight 32 lbs.
EPA (Sq. Ft.) 1.6


Watts 440W
Delivered Lumens 62,100
HID Equivalent 2000W
Energy Savings* 78%
Weight 41 lbs.
EPA (Sq. Ft.) 2.2


Watts 520W
Delivered Lumens 73,500
HID Equivalent 3000W
Energy Savings* 83%
Weight 47 lbs.
EPA (Sq. Ft.) 2.2


Watts 750W
Delivered Lumens 105,000
HID Equivalent 4000W
Energy Savings* 81%
Weight 67 lbs.
EPA (Sq. Ft.) 3.0

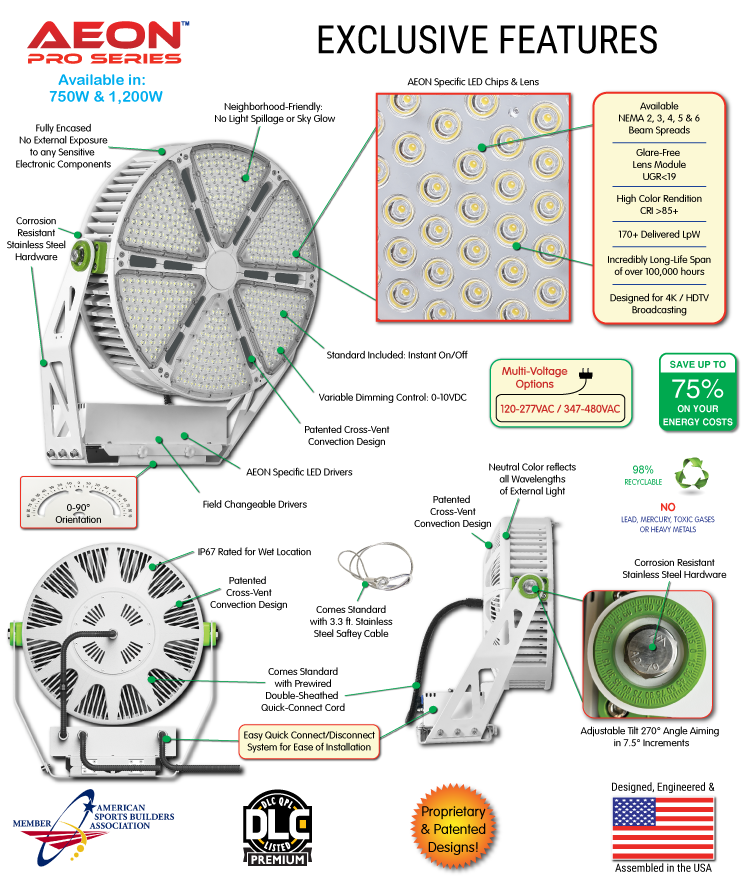

Sustainable Communities Begin with Smart Choices

Minimize Costs while Maximizing Safety


  • Heavy-duty, Lightweight and Durable Die-Cast Design for High Wear Resistance: Withstands Harsh, Extreme Outdoor Conditions and Corrosive Environments
  • The most Powerful Flood Luminaire with the Highest Reliability Level: Incredibly High 95% Total Efficiency and with the Highest Efficacy in its own Class: 140 Delivered LpW. More Light with Fewer Luminaires
  • Proprietary Thermal Management Design with Passive Cooling Maximizes Heat Dissipation for a Longer Life of the Luminaire. Designed for Greater Life Expectancy in Warmer Climates
  • Patented Revolutionary Aerodynamic Design for Minimal Drag
  • State-of-the-Art, Aesthetically Pleasant Compact Design with No Exposed Electronics or Wiring
  • Patented Cross-Vent Convection Design for Longer Life of the LED Package and Electronic Components
  • Rugged, Weather-Tight Design, IP67 (NEMA: 6P) Rated for Wet location
Learn More
  • Adjustable in 15° Increments: 0-90° Orient and 270° Tilt Angle
  • Solid-State Design: No Moving Parts. Ideal for High Vibration Areas (ANSI C136.31, 3G Rated)
  • Simple entry allows for Easy Installation and Maintenance
  • Several Mounting Options: Including Yoke, Pendent, or Hook
  • Rugged and Durable Luminaire stands up to the most demanding Elements and is ideal for use in Hot & Humid Climates and Suitable for use in Corrosive Environments
  • Neutral Color reflects all Wavelengths of External Light and therefore absorbs the least Heat for Better Thermal Management. UV Stabilized Electrostatic Finish to withstand Extreme Outdoor Conditions
  • Corrosion Resistant Stainless Steel Hardware
  • Incredibly Long-Life Span of over 100,000 hours

Precision, Glare-Free Optics

  • Proprietary Glare-Free Illumination: Minimizes Shadows and Provides a Crisp Illumination avoiding any Uncomfortable Sensation or Visual Discomfort. UGR <19
  • Precise, Custom-Engineered Optics with Controlled Intensity and Uniformity: Excellent for HDTV Broadcasting, Slow-Motion Flicker-free Recording and Digital Photography. Maintains Delivered Foot Candles over Luminaire’s Life
  • High Color Rendition showing True Colors: CRI >85
  • Scalable LED Modules in NEMA 2, 3, 4, 5 and 6 Beam Spreads allows for Optimized Configuration for different Applications
  • Various Delivered Lumen Packages to suit a Variety of Indoor and Outdoor Applications
  • Proprietary Design offers Uniform and Constant Light Levels throughout the Life of the Luminaire, with Minimal Lumen Depreciation
  • Avoids Light Pollution and Trespass: Optical Accuracy Directs Light precisely where needed without Spill
  • Neighborhood-Friendly: No Spillage or Sky Glow
  • US Patents: D866,832, D866,833, D866,834, D866,835


  • Advance Technology for Luminaire Longevity: Integrated Power Supply Operates at Lower Temperature and at incredible 95% Efficiency.
  • Technology within the Luminaire: Fully Encased, No External Exposure to any Sensitive Electronic Components
  • Advanced Functionality and User Friendly with Quick Connect System: Lenses, Modules, and Drivers are Field Changeable
  • 10kV Inline Surge Protection against Over Voltage, Short Circuit, and Over Temperature
  • Multi-Voltage: Available in 100-277VAC and 347-480VAC
  • Suitable for Wide Ambient Temperatures: -40ºF~+131ºF (-40ºC~+55ºC)
  • Operational Flexibility: Adaptable to Various Intelligent Lighting Controls: Wired or Wireless, Wi-Fi, Bluetooth, Zigbee, Dali, AirMesh Networks, Hybrid Networked Lighting Control, etc.
  • Ultra-low EMI eliminates Electrical Interference with surrounding Electronic System


  • Comes Standard with: Instant On/Off, Continuous Dimming, 6 ft. Prewired Sheathed Cord, Prewired Sheathed Dimming Cord and Hoist Hook
  • Simple, Reliable and Affordable, Maintenance-free Design. Can be Operated with or without Glare Shield
  • Save Labor Cost Significantly: Quick and Easy Installation Process
  • Meets/Exceeds National and International Standards

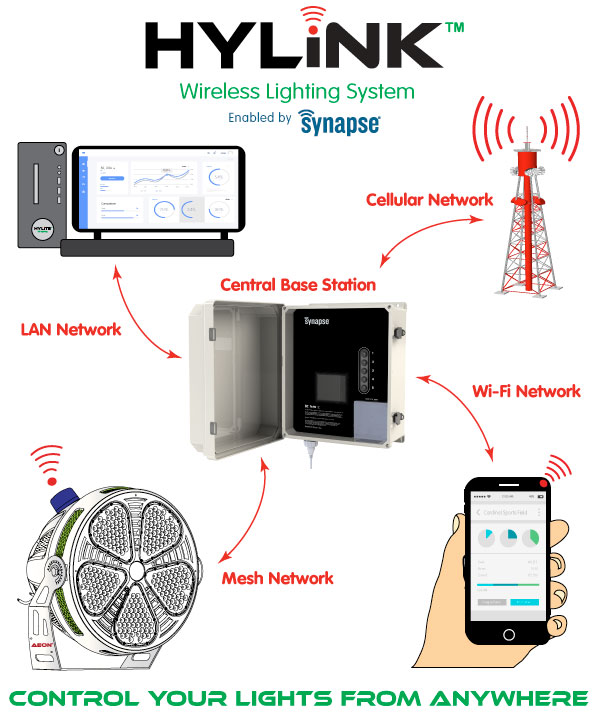

Wireless Control System

  • Maximize Energy Savings - Graphing of Power Consumption and Voltage
  • Works both Indoors and Outdoors - No Need for Separate Control Systems
  • Site Based Control. Functions with and without an active Internet Connection
  • Secure Connection to Site Controller via Wi-Fi and/or LAN
  • Data and Events Stored on Local Site Controller
  • Control from your Laptop, Tablet or a Smartphone
  • Flexible Control Solutions - Control Individual Luminaire or Groups of Luminaires
  • Multiple Zones, Behaviors, and Events
  • Fully Integrated Lighting Management System
  • Fully Scheduled System based on Automated Schedules or Events
  • Limitless Flexibility and Customization
  • Maximize Performance: Manage your System from any Device and Easily Monitor and Adjust Lighting Controls to Maximize Energy Savings.
  • For more information click here

Create an Experience that won't be Soon Forgotten

  • Full-Spectrum RGBA/RGBW Color Luminaire with the Highest Reliability Level: Incredibly High 95% Total Efficiency and with the Highest Efficacy in its Class
  • Create Dynamic Scenes and Excitement to your Venue or Facility
  • Suit a Variety of Indoor and Outdoor Applications
  • Ideal for Floodlighting, Spotlighting, Wall Washing and Grazing
  • Incredibly Long-Life Span of over 100,000 Hours
  • IP67 - Complete Protection against Dust, Debris and Water Infiltration
  • Operational Flexibility: Adaptable to Various Intelligent Lighting Controls: Wired or Wireless, Wifi, Bluetooth, Zigbee, Dali, AirMesh Networks, Hybrid Networked Lighting Controls, etc.
  • For more information click here

Enjoy a drastic Reduction in your Monthly Utility Bill and Eliminate Costly Maintenance expenses. A favorable Impact on your bottom line.


Affordable Initial Costs. Lower Life Cycle Costs.

Lowest Total Cost of Ownership.
