AEON ECO Series

Advanced Functionality, Versatility and Operational Efficiency.



AEON LED’s New ECO Series is the most Efficient High-Powered Luminaire with an Incredibly High (95%+) Total Efficiency. The perfect choice as an economic option for facilities that need a Powerful / High-Quality LED Luminaire. The Most Cost-Effective, High-Quality Sports and Flood Lighting Solution on the Market today. Up to 170+ Delivered LpW. Means Better Light, with Fewer Luminaires. AEON’s New ECO Series is designed specifically for Municipal, High School, Recreational Indoor and Outdoor Applications. Simple, Reliable, and Affordable, Maintenance-free Design.

The AEON ECO Series Provides Crisp Illumination, avoiding any Visual Discomfort with a UGR <19. AEON’s Proprietary Optics produce the Ideal Light Distribution and Beam Angles for a variety of applications while saving you up to 79% in energy costs compared to traditional HID Lighting. AEON ECO Series neighborhood friendly with No Spillage or Skyglow. The ECO Series has an Incredibly Long-Life Span of over 100,000 hours. The AEON ECO Series is Available with an Optional Tempered Glass Lens for additional Safety and UV Protection. The ECO Series has a high Color Rendition Index showing True Colors: CRI >85+.

The AEON ECO Series has 3 Lumen Packages to suit a variety of Indoor and Outdoor Applications: 230W with 39,100 Delivered Lumens, 310W with 51,150 Delivered Lumens, and 500W with 80,000 Delivered Lumens. The Advanced Technology within the AEON Drivers are Specifically Engineered and Designed for AEON Luminaires.

With the ECO Series, you will enjoy a drastic reduction in your monthly utility bill, eliminate costly maintenance expenses, and have a favorable impact on your bottom line. The AEON ECO Series has the right solution for you and your project. The right product for the right price! Efficiency by Design.






3 Popular Lumen Packages

230W: 39,100lm (Replaces 1,000W HID)

310W: 51,150lm (Replaces 1,500W HID)

500W: 80,000lm (Replaces 2,000W HID)





3 Popular Lumen Packages

230W: 39,100lm (Replaces 1,000W HID)

310W: 51,150lm (Replaces 1,500W HID)

500W: 80,000lm (Replaces 2,000W HID)




Applications

Our Technology is in a League of its Own!

Innovation with Outstanding Efficiency and Highest Quality Illumination!

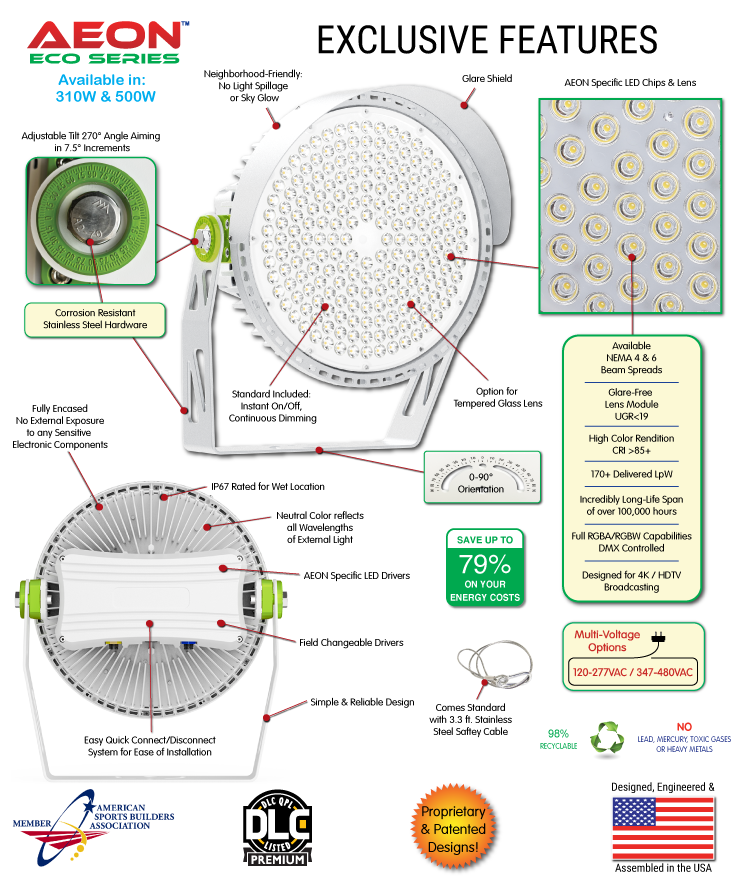

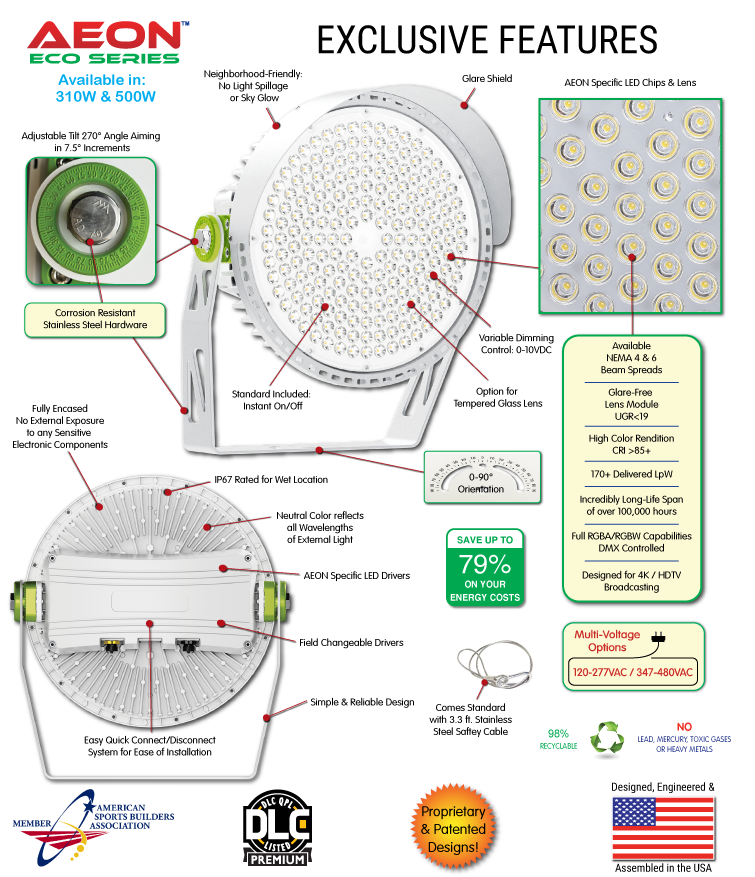

ECO Sports Lighting

The Most Cost-Effective, Highly-Efficient Sports Lighting Solution

  • Highly Efficient: Up to 170+ Delivered LpW. More Light with Fewer Luminaires. 95%+ Total Efficiency.
  • 3 popular lumen packages to suit a variety of indoor and outdoor applications
    • 230W with 39,100 delivered lumens (Replaces 1,000W HID)
    • 310W with 51,150 delivered lumens (Replaces 1,500W HID)
    • 500W with 80,000 delivered lumens (Replaces 2,000W HID)
  • Incredibly Long-Life Span of over 100,000 Hours
  • Solid-State Design: No Moving Parts. Ideal for High Vibration Areas (ANSI C136.31, 3G Rated)

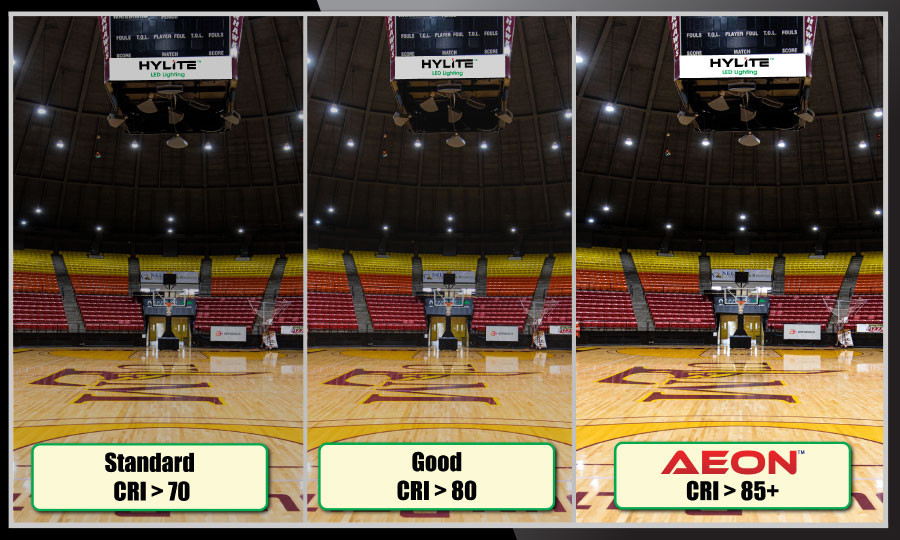

  • High Color Rendition showing True Colors: CRI >85+
  • Proprietary Glare-Free Illumination with Controlled Intensity and Uniformity: UGR <19
  • Neighborhood-Friendly: No Spillage or Sky Glow
  • Proprietary Design offers Uniform and Constant Light Levels throughout the Life of the Luminaire with Minimal Lumen Depreciation
  • Scalable LED Modules in NEMA 2, 3, 4, 5 and 6 Beam Spreads allow for Optimized Configuration for a Variety of High Performance Applications
  • Heavy-duty, Lightweight and Durable Die-Cast Design for High Wear Resistance: Withstands Harsh, Extreme Outdoor Conditions and Corrosive Environments
  • 6kV (Line-Line) and 10kA/20kV (Line-Ground) Surge Protection against Over Voltage, Short Circuit, and Over Temperature
  • Ultra-Low EMI eliminates Electrical Interference with surrounding Electronic Systems
  • Suitable for Ambient Temperatures: -40ºF~+122ºF (-40ºC~+50ºC)
  • Adjustable in 7.5⁰ Increments: 0-90⁰ Orient and 270⁰ Tilt Angle
  • Multi-Voltage: Available in 120-277VAC and 347-480VAC
  • Save Labor Cost Significantly: Quick & Easy Installation Process
  • Meets/Exceeds National and International Standards
Request ECO Catalog



Enjoy a Drastic Reduction in your Monthly Utility Bill and Eliminate Costly Maintenance Expenses.

A Favorable Impact on your Bottom-Line.

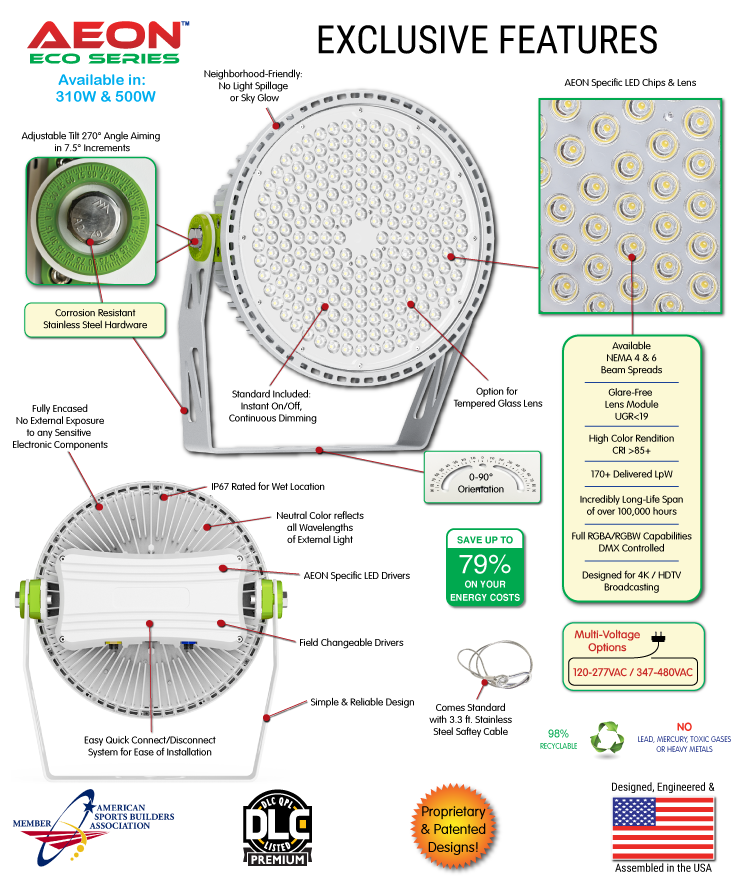

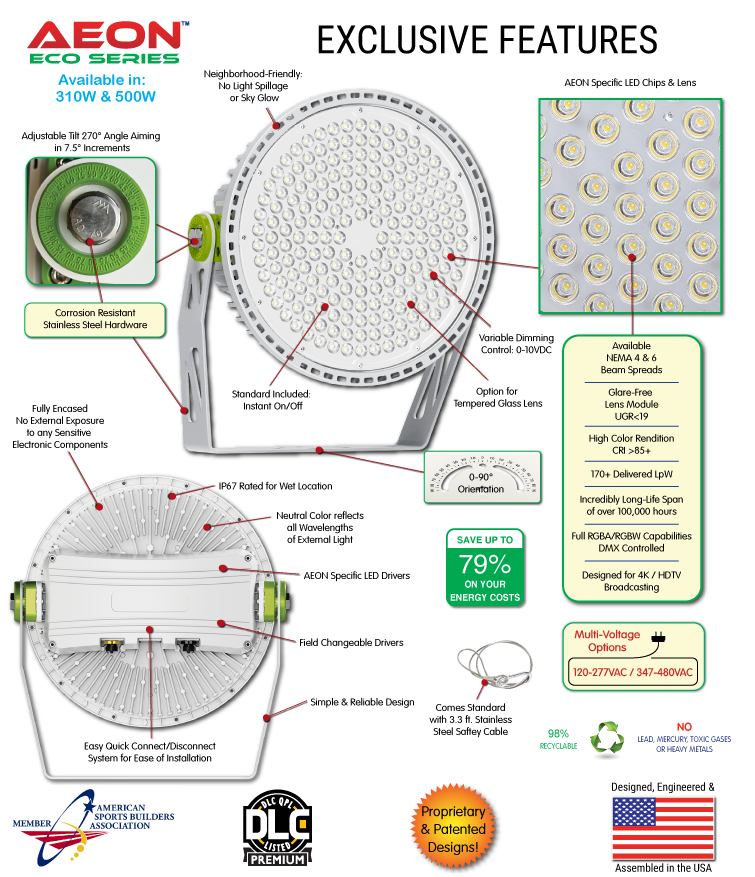

ECO Flood Lighting

The Most Cost-Effective, Highly-Efficient Flood Lighting Solution

  • Highly Efficient: Up to 170+ Delivered LpW. More Light with Fewer Luminaires. 95%+ Total Efficiency.
  • 3 popular lumen packages to suit a variety of indoor and outdoor applications
    • 230W with 39,100 delivered lumens (Replaces 1,000W HID)
    • 310W with 51,150 delivered lumens (Replaces 1,500W HID)
    • 500W with 80,000 delivered lumens (Replaces 2,000W HID)
  • Incredibly Long-Life Span of over 100,000 Hours
  • Solid-State Design: No Moving Parts. Ideal for High Vibration Areas (ANSI C136.31, 3G Rated)
  • High Color Rendition showing True Colors: CRI >85+
  • Proprietary Glare-Free Illumination with Controlled Intensity and Uniformity: UGR <19
  • Neighborhood-Friendly: No Spillage or Sky Glow
  • Proprietary Design offers Uniform and Constant Light Levels throughout the Life of the Luminaire with Minimal Lumen Depreciation
  • Scalable LED Modules in NEMA 2, 3, 4, 5 and 6 Beam Spreads allow for Optimized Configuration for a Variety of High Performance Applications
  • Heavy-duty, Lightweight and Durable Die-Cast Design for High Wear Resistance: Withstands Harsh, Extreme Outdoor Conditions and Corrosive Environments
  • 6kV (Line-Line) and 10kA/20kV (Line-Ground) Surge Protection against Over Voltage, Short Circuit, and Over Temperature
  • Ultra-Low EMI eliminates Electrical Interference with surrounding Electronic Systems
  • Suitable for Ambient Temperatures: -40ºF~+122ºF (-40ºC~+50ºC)
  • Adjustable in 7.5⁰ Increments: 0-90⁰ Orient and 270⁰ Tilt Angle
  • Multi-Voltage: Available in 120-277VAC and 347-480VAC
  • Save Labor Cost Significantly: Quick & Easy Installation Process
  • Meets/Exceeds National and International Standards
Request ECO Catalog



Sustainable Communities Begin with Smart Choices.

Minimize Costs while Maximizing Safety.

Additional Capabilities

Build a State-of-the-Art Lighting System from the Ground-Up or Update your Current Lighting System for the New Decade!

PNR-Additional-Capabilities



  • FREE Professional Lighting Layouts

  • Build the Complete Package with Pole Capabilities

  • Project Financing

  • Extended Warranty

  • HyLink Wireless Controls

  • RGB Capabilities: Click Here

  • Learn More: Click Here

  • Affordable Initial Costs. Lower Life Cycle Costs.

    Lowest Total Cost of Ownership.

    Request ECO Catalog

    Applications

    Are you interested in purchasing products or speaking with a true lighting expert? Please fill out the form below, and we will be in touch shortly!

    Request Information
