How Do You Install Loop Mount LED Lighting Fixtures?

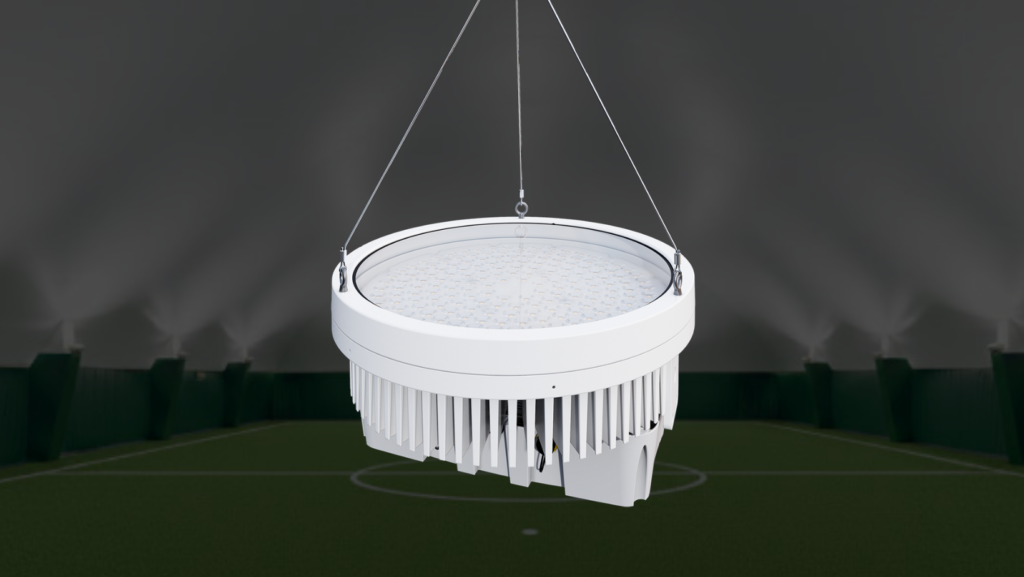

Many commercial, industrial, and sports facilities suspend luminaires rather than surface-mount them. High ceilings, structural beams, trusses, and uneven mounting points can make traditional brackets difficult to install. Loop-mount systems simplify installation by allowing fixtures to hang using adjustable suspension cables, giving installers the flexibility to position lighting exactly where it’s needed.

Instead of rigid mounting points, suspension cables allow fixtures to be aligned, leveled, and fine-tuned during installation. This flexibility helps ensure optimal light distribution, making loop-mount systems a popular choice in modern lighting installations.

The Hardware Behind a Secure Installation

A reliable loop-mount installation depends on properly engineered hardware that safely supports the luminaire. When installed correctly, these components form a stable suspension system that keeps the fixture level and aligned for optimal lighting performance.

The AEON loop mount system includes several key components:

Wire Lockers attach to the luminaire housing with M4 screws and secure the suspension cables.
Suspension Cables support the fixture and allow height adjustments during installation.
Cable Adjustment Through Lockers allows installers to fine-tune fixture positioning before trimming excess cable.
Fixture Leveling ensures the luminaire sits at a true horizontal position for even light distribution.
Secure Hardware Assembly maintains a stable suspension structure throughout the life of the fixture.

Direct Loop Mount Installation

Direct loop mounting is commonly used when luminaires hang directly beneath a structural support point. This configuration is typical in warehouses, industrial facilities, and sports venues where fixtures must be positioned cleanly beneath ceiling structures.

During installation, wire lockers are secured to the luminaire using the provided screws. Suspension cables are threaded through the lockers and adjusted until the fixture reaches the correct height. Once properly positioned, excess cable can be trimmed to maintain a clean installation.

Installation Tip:

The luminaire should be leveled carefully so it sits at a 0-degree angle. Proper alignment ensures consistent lighting distribution across the illuminated area.

Adapting to Complex Structures

Not every facility allows fixtures to hang directly beneath their mounting point. Structural beams, ductwork, and architectural elements may require the suspension system to support the luminaire from different angles. Indirect loop-mount configurations provide the flexibility needed to accommodate these challenges.

By adjusting cable positioning to match available mounting points, installers can position luminaires correctly even when ceiling structures limit direct mounting options.

Safety Cable Installation Is Essential

Every suspended lighting system should include a properly installed safety cable. While the primary suspension system supports the luminaire during normal operation, the safety cable provides an additional layer of protection if the primary mounting hardware fails.

Proper safety cable installation includes:

Attach the safety cable to the luminaire using the M8 Allen screw and washer provided.
Secure the cable loop using cable grips to maintain a firm connection.
Connect the snap-lock hook to a structural mounting point capable of supporting the fixture’s weight.
Minimize cable slack so the safety cable provides immediate support if the primary system fails.

Download the Complete Loop Mount Installation Guide

AEON provides a detailed Loop Mount Lighting Instruction Sheet that includes diagrams, hardware references, and installation guidelines to help contractors install fixtures safely and efficiently.

The guide walks through the entire installation process, including mounting hardware setup, cable adjustment, and safety cable installation.

Get a Professional Lighting Layout Before Installation

AEON offers free professional lighting layout designs to help contractors and facility managers determine the optimal fixture placement and mounting configuration before installation begins.

These layouts ensure luminaires are positioned correctly, improving system performance and helping avoid costly installation mistakes.

Plan Your Lighting Installation with AEON

Before installing new luminaires, request a professional lighting layout or estimate potential energy savings using our lighting cost calculator.

Request a Lighting Layout

Loop Mount LED Lighting Installation FAQ

What is a loop mount light fixture?

A loop mount light fixture is a luminaire designed to be suspended using cables or chains attached to mounting loops on the fixture housing. This mounting method allows installers to hang lighting fixtures from structural supports such as beams or trusses while adjusting the fixture height and alignment for optimal light distribution.

How do you hang LED high bay lights?

LED high bay lights are typically hung using suspension cables, chains, or loop mount hardware attached to a structural ceiling support. Installers secure mounting hardware to the luminaire, attach suspension cables, and adjust the cable length to position the fixture at the correct height before leveling the light.

What cable is used for suspended LED lighting?

Most suspended LED lighting systems use aircraft-grade steel suspension cables designed to safely support the weight of the luminaire. These cables are threaded through locking hardware or adjustable cable grippers that allow installers to fine-tune mounting height and alignment.

Do high bay lights require safety cables?

Yes. Safety cables are recommended for suspended high bay lighting fixtures. The safety cable acts as a backup support system that helps prevent the fixture from falling if the primary suspension hardware fails.
